Blog Editor’s Note: We greatly admire the Galileo project, all they have achieved and are still achieving. As a civilian project focused on economic and public benefits, the system has been designed with features not available in older and military systems such as GPS and GLONASS.

Building and operating a GNSS is an incredibly difficult and complex task, involving many difficult and complex sub-tasks. For example, we just had a conversation with Dr. Marc Weiss yesterday about the many subtleties and difficulties of building an atomic clock (not to mention one that needs to go into space), which is just one component of a GNSS. You also need rocket science, Einstein’s general AND special theories of relativity, and a whole lot more.

Very glad to see Galileo up and running again.

GPS and GLONASS have have outages also. Bei Dou’s turn will come. Good reminders that no human-created system is perfect. All are subject to a host of vulnerabilities and threats.



Status report from the GSA website 19 Dec 2020:

Further information on the event of 14th December

The Galileo system was returned to its nominal state a few hours after the incident which occurred between 00:00 and 06:00 on Monday morning 14 December.

This service incident is still under investigation. It is confirmed to be related to an abnormal behaviour of a ground atomic clock in the time determination function of the system.

The time synchronisation and orbit determination algorithms immediately flagged the data as MARGINAL (SISA*=NAPA**) before it affected the quality of the measurements.

However, the incorrect data was still uploaded to the satellites.

User receivers that do not process the health and status flags, or that keep MARGINAL satellites as part of the position solution computation, may have experienced large positioning errors.

The following plots present the status of the various satellites during the event and provide an estimation of the typical pseudorange errors (***) experienced by users if processing the satellites, despite being flagged as MARGINAL.

Figure: SiS Health Status for FNAV signal

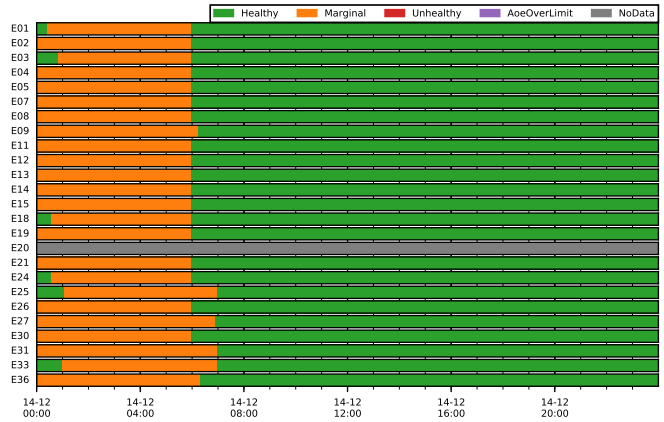

Figure: SiS Health Status for INAV signal

Note: ‘E20’ corresponds to the satellite GSAT0104 / SV20, unavailable as per NAGU 2014041

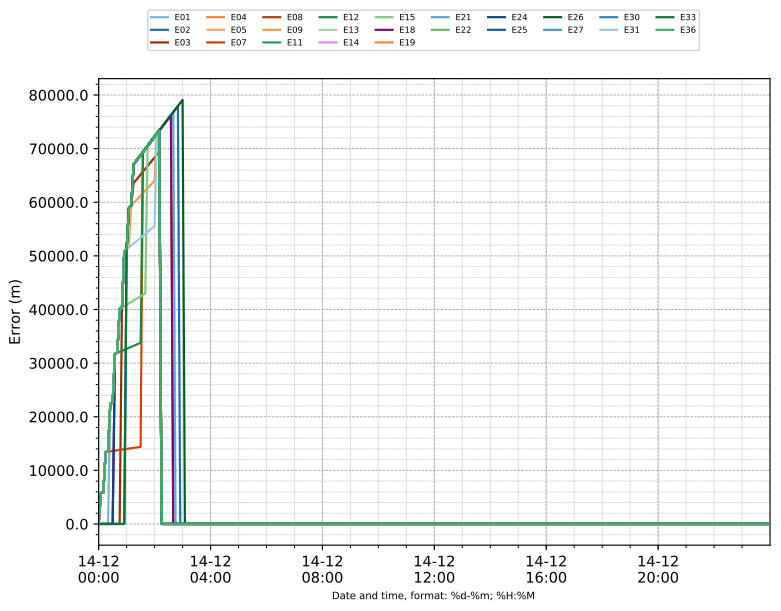

Figure: Pseudorange errors observed by the users if processing the satellites flagged Marginal

The anomaly investigation is pursued with the objective of identifying the detailed sequence of events and the necessary corrections to prevent such failures (and protect users). Based on user feedback received so far, updated guidelines for the processing of health and status flags in the Galileo OS Service Definition Document are also under assessment.

* SISA: Signal In Space Accuracy
** NAPA: No Accuracy Prediction Available
*** Estimation provided based on rapid truth products available to date with the corresponding limitations.
